FRP Tank

FRP Tank

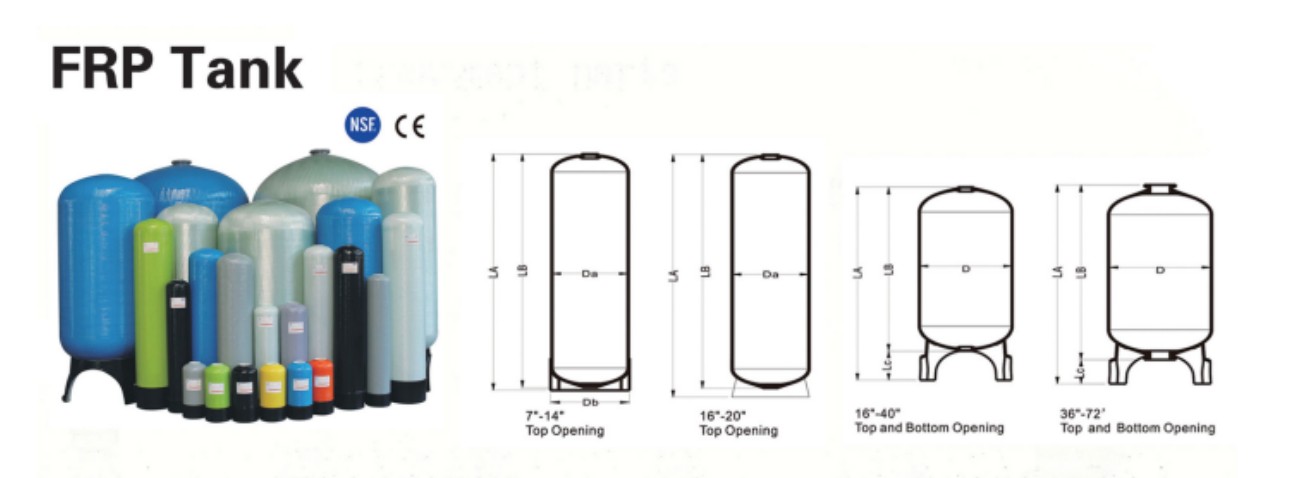

A Frp Pressure Tank is a pressure vessel used to filter and soften water. It is made of food-grade PE liner, epoxy resin and fiberglass. The working pressure range of the water tank is 125PSI-150PSI, and each product will be subjected to 1.2 times more than 1.2 times of hydrostatic water pressure holding test before leaving the factory.

Size 1054 1252Green 1265Green 1465Green 1665Green 2069 2465 3065 3665
Outer dia *H 260*1387 310*1330 310*1680 362*1657 412*1659 500*1750 622*1950 775*1900 934*1900
Opening form  Top Opening 2.5" 2.5" 2.5" 2.5" 2.5" 4"-8UN 4"-8UN 4"-8UN 4"-8UN
Flow
(T/H)
0.6~1.5 1.6~2.2 2.0~2.5 2.5~3.0 3.2~4.5 4.0~5.5 6.2~8.2 7.2~12.2 13.2~16.2
Quartz sand filling
(kg)
70 90 109 148 194 319 500 769 1120
Manganese sand filling quantity
(kg)
80 100 125 170 221 365 570 879 1290
Activated carbon fill amount
(kg)
19 27 31 43 56 91 143 220 321
Resin amount 37.09 53 63 85 111 183 285 440 641


Product Description
A  Frp Pressure Tank is a pressure vessel used to filter and soften water. It is made of food-grade PE liner, epoxy resin and fiberglass. The working pressure range of the water tank is 125PSI-150PSI, and each product will be subjected to 1.2 times more than 1.2 times of hydrostatic water pressure holding test before leaving the factory. The product has the characteristics of corrosion resistance, high strength and long service life. It provides a variety of colors and models to choose from, and can be customized according to the needs of customers. The product is widely used in petroleum, chemical industry, environmental protection, food, pharmaceutical, printing and dyeing and other industries. In addition, the product has passed the NSF certification of the United States, the ISO9001 quality system certification and the CE certification of the European Union.
